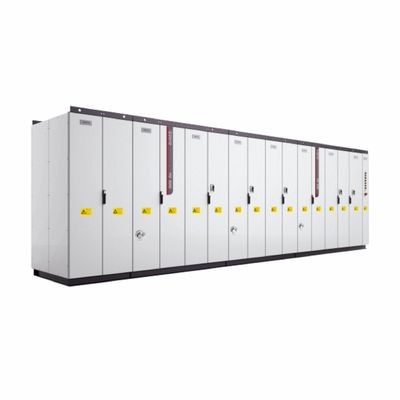

Space Space-Optimized Cabinet Design for Large Scale Drive Installations Saving Valuable Floor Space

HD8000 series VFD is a high-power drive system includes AC-DC-AC comverter and DC-AC common DC bus multi-axis motor drive unit. The maximum power can reach 30MVA for single machine and 60MVA for parallel operation. Its modular hardware and engineering software design concept enables it to operate for various complex conditions.

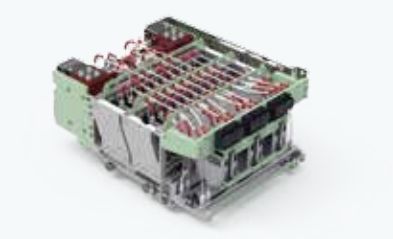

HD8000 series VFD adopts presspack IGCTand Diode as well as liquid cooling method, the whole machine meets the protection level IP54 and it has super environmental adaptability, high reliability, excellent heat dissipation performance and small volume, there are two-quadrant and four-quadrant rectification solutions.

• Characteristics: single/multiple axis drive, IP54 protection, two-quadrant/four-quadrant
• Design: modular design
• Rectification: multi-pulse basic rectification, smart rectification and PWM rectification
• Voltage rate: 1900V3000V (3300V), 6000V, (6600V), 10000V
• Maximum power: 30MVA (single) 60MVA (parallel)
• Compitable motor: asynchronous induction motor, permanent magnet synchronous motor, Electrically excited synchronous motor
• Control method: V/F, close-loop vector control with sensor, open-loop vector control without sensor
• Cooling: water cooling

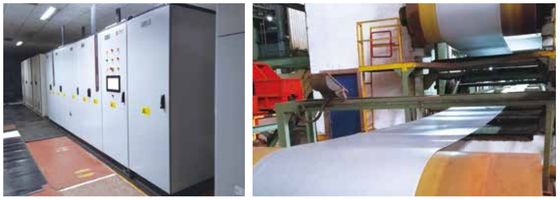

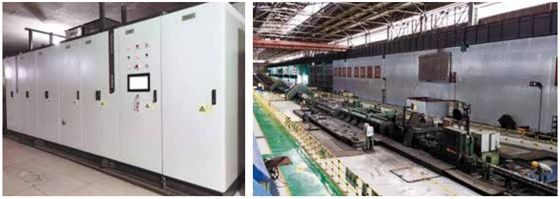

• Metallurgical Engineering
• Oil and Gas Transportation
• Testing Platform
• Renewable Energy
• Rail Transportation
• Mining&Lifting
• Marine Equipment
• LNG
• Power Source
• Energy Storage

FAQ: HD8000 High-Voltage Drive for German Precision Engineering

1. Q: Is the HD8000 compatible with our existing high-precision manufacturing automation systems?
   A: Absolutely. With speed stable accuracy of 0.01% and advanced CLVC control, the HD8000 meets the stringent requirements of German automation and robotics.

2. Q: How does the efficiency of the HD8000 contribute to reducing operational costs in energy-intensive industries?
   A: With an efficiency of ≥99% in its basic rectification, it minimizes energy loss, offering significant cost savings, a critical factor for Germany's competitive industrial sector.

3. Q: What certifications does the HD8000 hold for use in the EU market?
   A: It is designed to meet and exceed relevant CE, UL, and other international standards, ensuring full compliance for deployment across Europe.

4. Q: Can it handle the dynamic load changes typical in our automotive production lines?
   A: Yes. The fast torque response time of 5ms and dynamic drop compensation ensure smooth operation under rapid load variations, preventing production defects.

5. Q: Is the water cooling system reliable and easy to maintain?
   A: Our robust water cooling design ensures superior heat dissipation for long component life. It's designed for low maintenance and integrates seamlessly with standard industrial cooling loops.

6. Q: We have strict safety protocols. What protective features are included?
   A: It includes comprehensive protection: overload, short circuit, overheating, and fault pre-judgment, ensuring the safety of both personnel and equipment.

7. Q: What support and technical service is available locally in Germany?
   A: We have a dedicated technical support center in Germany with certified engineers providing 24/7 service, spare parts, and on-site assistance.

8. Q: How does the HD8000 support Industry 4.0 initiatives?
   A: It offers advanced connectivity for data monitoring and integration with plant-wide IoT systems, enabling predictive maintenance and smart energy management.

9. Q: Is the IP54 protection sufficient for harsh industrial environments like metal processing?
   A: Yes, IP54 rating protects against dust and water splashes, making it suitable for most challenging factory conditions. The C4-M anti-corrosion coating provides additional durability.

10. Q: Why should we choose HD8000 over established European brands?
    A: The HD8000 offers a unique blend of German-level precision, superior efficiency, competitive pricing, and a robust global support network, delivering exceptional value and performance.

FAQ: HD8000 for Desert & Petrochemical Applications in Saudi Arabia

1. Q: Can the HD8000 operate reliably in extreme desert heat, where ambient temperatures often exceed 40°C?
   A: Yes. The drive is designed for inlet temperatures up to 40°C and uses an efficient water-cooling system to maintain optimal operating temperatures even in harsh climates.

2. Q: Is it suitable for large pump and compressor applications in our oil and gas fields?
   A: Perfectly. Models like the HD8000-AA60 (60MVA) are engineered for high-power applications, offering robust torque control and overload capacity for pumps and compressors.

3. Q: How does the anti-corrosion specification (C4-M) protect against coastal and desert salinity?
   A: The C4-M coating is a heavy-duty protection specifically for highly corrosive atmospheres, ideal for Saudi industrial zones near the Gulf.

4. Q: What is the power factor performance, and can it help us avoid utility penalties?
   A: With a power factor adjustable to 1.0, it ensures your facility operates efficiently, improves grid stability, and avoids penalties from the Saudi Electricity Company.

5. Q: What is the lead time for delivery and installation support in the Kingdom?
   A: We maintain strategic stock and have established logistics channels for swift delivery. Our project managers ensure smooth installation and commissioning.

6. Q: Does it have protection against voltage fluctuations common in our grid?
   A: The wide input voltage range and built-in protection circuits are designed to handle grid fluctuations, ensuring continuous operation.

7. Q: Can you provide training for our local maintenance teams?
   A: Absolutely. We offer comprehensive training programs in both English and Arabic on operation, basic troubleshooting, and maintenance procedures.

8. Q: Is the 120% overload for 60s sufficient for starting high-inertia loads?
   A: Yes, this high overload capability provides the necessary starting torque for even the most demanding high-inertia applications like large fans or crushers.

9. Q: How does the product ensure minimal downtime?
   A: Features like fault pre-judgment and modular design allow for proactive maintenance and faster repairs, maximizing your operational uptime.

10. Q: Why is HD8000 the best investment for Saudi Arabia's Vision 2030 industrial growth?
    A: It brings world-class efficiency and reliability to modernize your industrial base, reducing energy consumption and operational costs, directly supporting the goals of Vision 2030.
