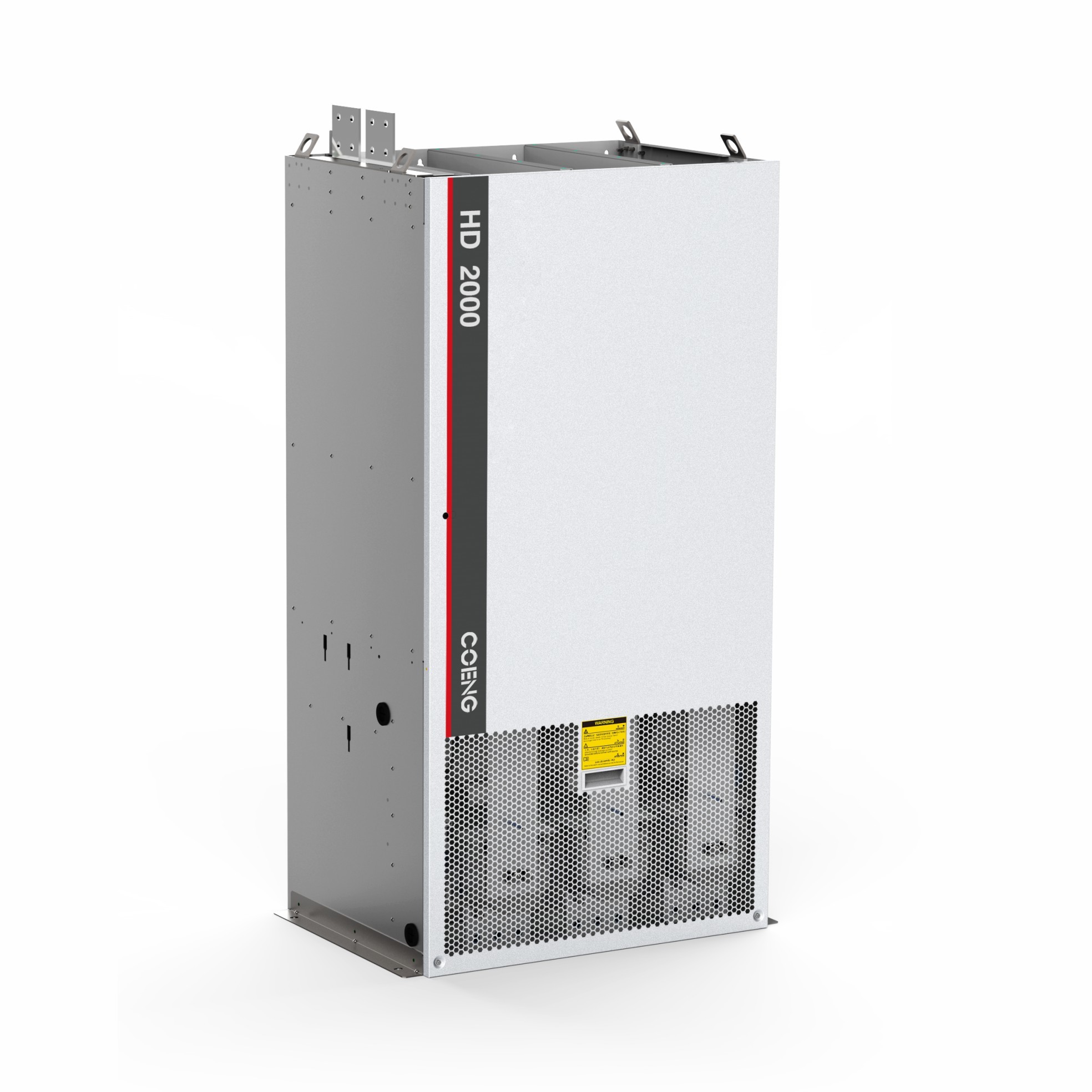

Robust Overload Capacity in HD2000 Drives: 130% Rated Current for 70 Seconds
| Tempat asal | CINA |
|---|---|
| Nama merek | COENG |
| Sertifikasi | CE |
| Nomor model | HD2000-C-10-2 |
| Kuantitas min Order | 1 |
| Kemasan rincian | Kotak kayu |
| Waktu pengiriman | 7-30 hari kerja |
| Syarat-syarat pembayaran | L/C, T/T, Western Union |
| Menyediakan kemampuan | 20000 SET/TAHUN |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Tunggal/Multi-Drive | Sistem fleksibel dengan unit/kabinet yang menopang dua/empat kuadran | Desain Modular | Memungkinkan fleksibilitas aplikasi dan integrasi sistem yang komprehensif |
|---|---|---|---|
| Unit Penyearah | Unit penyearah Basic/Smart/PWM untuk konversi daya serbaguna | Max. Maks. Single Unit Power Kekuatan Satuan Tunggal | 1400kW (berpendingin udara), 2800kW (berpendingin cairan) |
| Tingkat Tegangan | 400V, 690V, 1140V, 1380V | Max. Maks. Parallel Operation Power Kekuatan Operasi Paralel | 11200kW (berpendingin udara), 22400kW (berpendingin cairan) |
| Menyoroti | VFD drive with overload capacity,variable frequency drive 130% current,HD2000 drive 70 seconds performance |
||
Deskripsi Produk

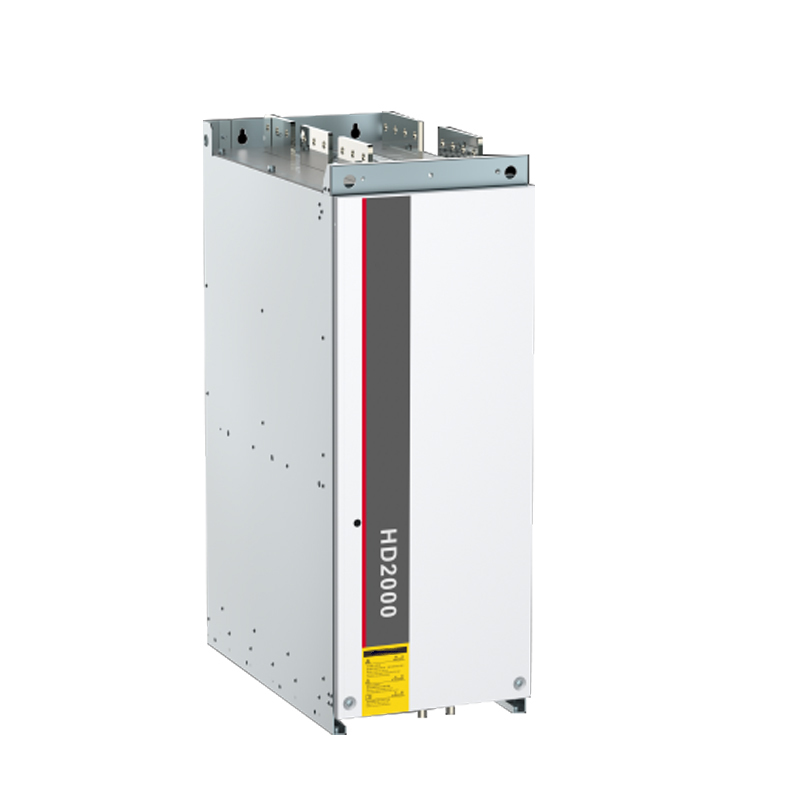

| Model | HD2000 Series Low Voltage Engineering Inverter(Liquid-cooled) | |
| Basic Rectifier | Input voltage | 4:380V～480V,6:500V～690V |
| Input frequency | (50Hz/60Hz)±6% | |
| Output voltage | Input voltage * 1.32 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥99% Efficiency | |
| Protection eunctions | Protection functions: Overheating protection, soft-start protection, Interlock | |
| protection, and more. | ||
| Intelligent rectifier | Input voltage | 4:380V ~ 480V,6: 500V ~ 690V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.3 (Under full-load condition) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98.5% Efficiency | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, IGBT pass-through protection, and more | |
| PWM rectifier | Input voltage | 4:380V~480V,6:500V~690V,9:1140V,A:1380V |
| Input frequency | 47 ~ 63Hz | |
| Output voltage | Input voltage * 1.5 (Under rated conditions) | |
| Overload capacity | Relative overload at 150% of rated current for 60 seconds, maximum current (Imax), DC overload for 5 seconds,duty cycle of 300 seconds | |
| Operating efficiency | ≥98% Efficiency (Including LCL filter unit) | |
| Power factor | Adjustable (Factory setting at 1) | |
| Protection functions | Protection functions: Overheating protection, Overcurrent protection, Overload protection, IGBT pass-through protection, and more. | |
| Inversion | Rated Input voltage | 4:410Vdc～780Vdc,6:550Vdc～1100Vdc,9:1488Vdc～2200Vdc, |
| A:1488Vdc~2200Vdc | ||
| Output voltage | 0 ~ Rectifier AC input voltage | |
| Output frequency | 0 ~ 500Hz | |
| Speed range | V/F:1:50 OLVC:1:200 CLVC:1:1000 | |
| Speed stability | OLVC:0.2% CLVC:0.01% | |
| Speed fluctuation | OLVC:0.2% CLVC:0.1% | |
| Starting torque | OLVC:150%(0.5Hz) CLVC:200%(0Hz) | |
| Torque control | V/F: Unsupported OLVC:Supported CLVC: supported | |
| Torque accuracy | OLVC:5% CLVC:5% | |
| Torque response time | OLVC:5ms CLVC:5ms | |
| Speed response time | OLVC:100ms CLVC:100ms | |
| Dynamic speed drop equivalent | OLVC:0.5%*s CLVC:0.3%*s | |
| Environmental conditions | Temperature | -15℃ ~ +40℃ Without derating, +40℃ ~ +55℃ derating applies |
| Humidity | 5% ~ 95% Mon-condensing | |
| Altitude | ≤4000m, Derating applies from 2000m to 4000m | |
| Mechanical data | Anti-vibration performance | Complies with IEC 60721-3-3:2002 |
| Protection level | IP00 / IP20 / IP40 | |
| Safety level | Complies with UL 508C-2004 | |
| Cooling method | Liquid-cooled | |
Motor Drive VFD Inverter Typical Applicantion
The distinctive selling points corresponding to different countries or regions
1.Australia
- Rugged Environmental Adaptation: Functions efficiently in high temperatures (up to 55°C with derating) and dry conditions common in Australian outback mines.
- High Altitude Operation: Suitable for mining sites at elevations up to 4000m, ensuring consistent performance.
- Water-Cooled High Power: Liquid-cooled models (160–2800kW) support Australia’s heavy industries like mineral processing.
- Rapid Dynamic Response: 0.3% dynamic speed drop in CLVC mode enhances control in conveyor and pump systems.
- Compliance with International Standards: Meets global safety and performance norms, trusted by Australian engineering firms.
2. Russia
- Extreme Cold Performance: Operates reliably at -15°C without derating, crucial for Russia’s harsh winters.
- High Power Range: Models up to 3400kW meet the demands of Russia’s oil, gas, and heavy machinery sectors.
- Robust Overload Handling: 150% overload capacity ensures stability in intermittent high-load scenarios.
- Advanced Cooling Flexibility: Air and liquid cooling options adapt to both indoor and outdoor installations.
- Long-Distance Compatibility: Stable output over wide voltage ranges supports remote industrial sites with unstable power.
3. South Africa
- Voltage Versatility: Handles input from 380V to 690V, accommodating South Africa’s frequent power fluctuations.
- Efficiency in High Heat: Maintains ≥98% efficiency even in high-temperature environments common in mining and metallurgy.
- Dust Protection (IP40): Essential for South Africa’s dusty mining and manufacturing sites.
- Scalable Solutions: Modular design allows easy expansion from single-drive to multi-drive systems as business grows.
- Cost Savings: High efficiency and reduced maintenance lower total cost of ownership for budget-conscious industries.
4. Mexico
- Adaptability to Humid Climates: 5–95% humidity tolerance ensures reliability in Mexico’s coastal and tropical regions.
- Flexible Installation: Compact and standard cabinet sizes (e.g., 400*2200*650mm) fit diverse industrial layouts.
- High Starting Torque: 200% at 0Hz (CLVC) supports heavy initial loads in automotive and assembly lines.
- Energy Compliance: Adjustable power factor helps meet Mexico’s evolving energy regulations.
- Easy Integration: Compatible with both basic and smart rectifier units, simplifying upgrades in existing plants.
5. United Kingdom
- High Efficiency for Sustainability: ≥99% efficiency supports the UK’s net-zero carbon goals by reducing energy waste.
- Precision Control: Speed fluctuation as low as 0.1% (CLVC) ideal for high-tech sectors like aerospace and pharmaceuticals.
- Safety and Standards: Complies with IEC and UL norms, ensuring compliance with UK’s rigorous safety regulations.
- Compact and Powerful: Air-cooled models up to 160kW save space in urban industrial zones.
- Multi-Drive Readiness: Supports modular drive systems for flexible automation in smart manufacturing.
