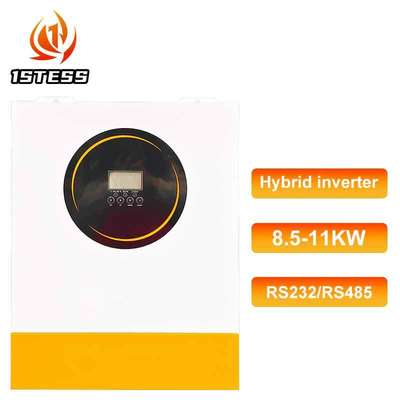

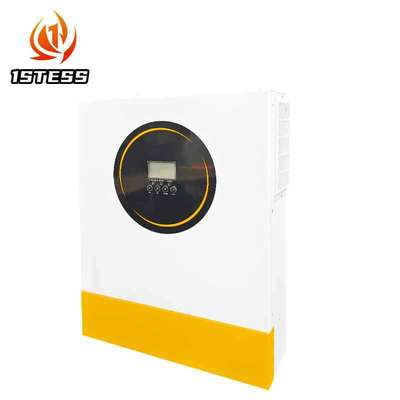

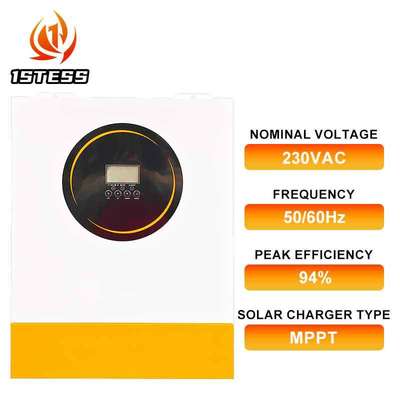

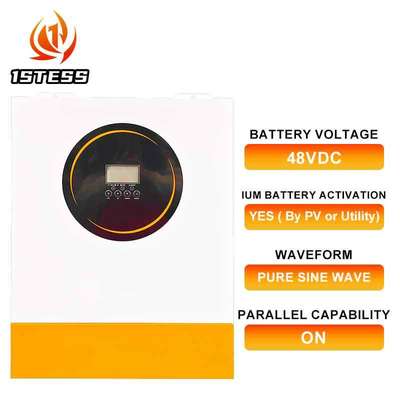

11KW Hybrid Solar Inverter with 500Vdc Max PV Input Powerfactor 1.0 and Detachable Dust Cover
| Tempat asal | Guangdong, Cina |
|---|---|
| Nama merek | COENG |
| Sertifikasi | CE, IEC |
| Nomor model | EM (PV60-500VDC) 11000-48L |
| Kuantitas min Order | 1 |
| Kemasan rincian | Karton, palet |
| Waktu pengiriman | 10-30 hari kerja |
| Syarat-syarat pembayaran | L/C, T/T, Western Union |
| Menyediakan kemampuan | 20000piece/bulan |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Ukuran | Ukuran 540*415*122mm | Tegangan baterai | 48v |
|---|---|---|---|
| Tegangan input | 230vac | OEM | Terima OEM |
| Tipe inverter | Inverter Solar Hibrida | Tipe output | Gelombang sinus tunggal dan murni |
| Berat Kotor | 15kg | ||
| Menyoroti | 500Vdc Max Hybrid Solar Inverter,Powerfactor 1.0 MPPT Solar Inverter,Detachable Dust Cover Off Grid Inverter |
||
Deskripsi Produk
11kW Hybrid Solar Inverter - Single Phase Pure Sine Wave Off Grid with MPPT and 48V Lithium Battery Support
Key Features
- Built-in dual MPPT solar charge controllers
- Lithium battery activation via PV or utility power
- RS485 communication for LiFePO4 battery compatibility
- Pure sine wave output for sensitive electronics
- 1.0 power factor for efficient operation
- High 500Vdc maximum PV input
- Built-in MPPT 140A/160A charge controller
- Battery-less operation capability
- Detachable dust cover for harsh environments
- Optional WiFi remote monitoring
- Multiple output priority modes: UTL, SOL, SBU, SUB
- EQ function for battery optimization and extended lifecycle
Technical Specifications
| Model | EM8500-48L | EM11000-48L |
|---|---|---|
| Capacity | 8.5KVA/8.5KW | 11KVA/11KW |
| Maximum PV Input Power | 10000W | 11000W |
| Lithium Battery Activation | YES (By PV or Utility) | YES (By PV or Utility) |
| Battery Voltage | 48VDC | 48VDC |
| Solar Charger Type | MPPT | MPPT |
| Communication Interface | RS232/RS485/DRY CONTACT | RS232/RS485/DRY CONTACT |

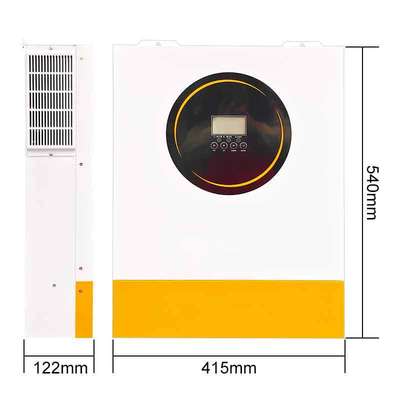

| Dimensions (D x W x H) | 540×415×122mm | 540×415×122mm |
Manufacturer Information
Shenzhen First Tech Co., Ltd, established in 2017, is a comprehensive solution provider for solar and battery energy storage systems. Specializing in research, development, production, sales and service of commercial/industrial energy storage systems, home energy storage systems, lithium-ion battery packs, solar hybrid inverters, and solar optimizers.
Located in Shenzhen, China, our factory holds ISO9001, ISO14001, and ISO45001 certifications. Our products are certified with TUV-CB, CEIEC, EMC MSDS, and UN38.3 standards, exported worldwide to Europe, Africa, Middle East, North America, South America, and Southeast Asia.
We welcome OEM & ODM orders, offering professional service, quality products, and competitive pricing. Committed to becoming a global leader in solar & ESS solutions, we strive to provide green energy for a cleaner world.
Product Images
