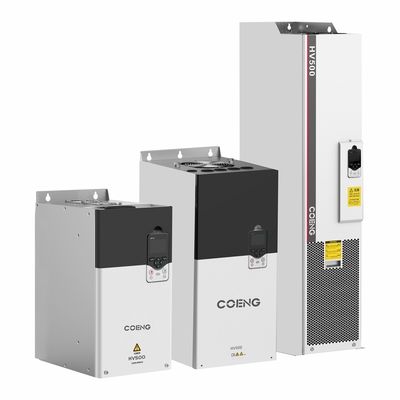

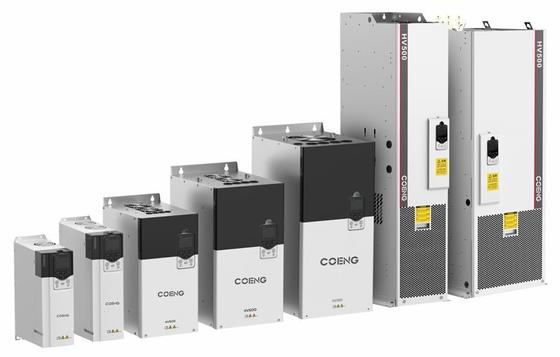

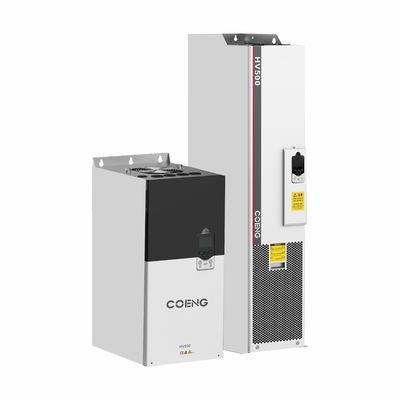

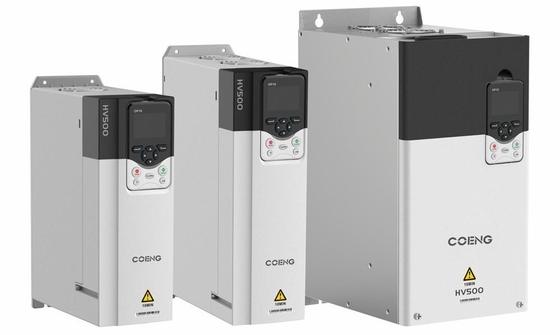

High-Efficiency Smart Drive with ≥95% Efficiency for 30kW+ Systems and Energy Saving Compliance
| Tempat asal | CINA |
|---|---|
| Nama merek | COENG |
| Sertifikasi | EC |
| Nomor model | HV500 |
| Kuantitas min Order | 1 |
| Kemasan rincian | karton, kasus kayu lapis |
| Waktu pengiriman | 10-30 hari kerja |
| Syarat-syarat pembayaran | L/C, T/T, Western Union |
| Menyediakan kemampuan | 20000 SET/TAHUN |
Hubungi saya untuk sampel gratis dan kupon.
Ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan 24 jam bantuan online.
xDetail produk
| Tingkat Perlindungan | IP20 | Cara pendingin | Pendinginan udara paksa |
|---|---|---|---|
| Efisiensi | 5,5 kW~22 kW: ≥93%; Di atas 30 kW: ≥95% | Tegangan Masukan | 200V (-15%) ~240V (+10%) 3Fase, 380V (-15%) ~480V (+10%) 3Fase, 500V (-15%) ~690V (+10%) 3Fase |
| Frekuensi input | 50Hz/60Hz±5% | Tegangan output | Tegangan masukan 0V~ |
| Frekuensi output | 0Hz~500Hz | ||
| Menyoroti | High-Efficiency Smart Drive VFD,30kW+ Systems Frequency Inverter,Energy Saving VFD Inverter |
||
Deskripsi Produk
Operation panel
HIC200-OP-10-W is a smart operator panel developed independently for high-performance transmission products, which is informative, friendly
and easy to use, and according to the different configurations of the panel, it is divided into two kinds: wiFi function and without WiFi function,
which are conveniently applied to high-performance, single transmission, multi-VFDs system, it can monitor and adjust the system.
Accessory
| Optional | Module | Function |
| Keyboard Base | HVKMB | Depending on the situation, the base can be installed in the specified position and the drive can be operated by operating the keyboard |
| Communication Adapter | HVCOM-USB | The drive can achieve high-speed communication with the computer via this option |
| Profibus-DP Expand Card | HVCOM-DP | It is for Profibus-DP bus communication, It can fulfill the monitoring and diagnostics of inverters |
| ABZIncremental Code disk Expansion Card |
HVPG-ABZ | Code disk expansion card, incremental code disk for ABZ signal output, power programmable control, compatible single/bipolar output of the code disk |
| CANopen Expansion Card | HVCOM-CAN | It is for CANopen bus commnication, it can fulfill the monitoring and diagnostics of inverters |
| Three-phase voltage detection module |
HVVMU | Detection of three-phase voltage, it can be used for permanent magnetic synchronous motor soft start grid, speed tracking and other functions |
Technical Specification
| Technical Specification | ||
| Input/output Power |
Input Uin | 200V (-15%) ~240V (+10%) 3Phase , 380V (-15%) ~480V (+10%) 3Phase, 500V (-15%) ~690V (+10%) 3Phase |
| Input Frequency | 50Hz/60Hz±5% | |
| Unbalance Degree of Uin | ≤3% | |
| Output Uout | 0V~Input Uin | |
| Output Frequency | 0Hz~500Hz | |
| Control Performance |
Motor Type | Asynchronous / Synchronous |
| Control Method | V/F, OLVC (Open-Loop Vector Control), CLVC (Close-Loop Vector Control) | |
| Range of Speed Regulation | 1:10 V/F, 1:100 OLVC, 1:1000 CLVC | |
| Start Torque | VF: 100% (0.5Hz), OLVC: 150% (0.5Hz), CLVC: 180% (0Hz) | |
| Torque Precision | ≤5%, Vector Control | |
| Torque Pulsation | ≤5%, Vector Control | |
| Speed Regulation Precision | OLVC 0.2%, CLVC 0.01% | |
| Torque Response | ﹤5ms, Vector Control | |
| Dynamic Speed Reduction | OLVC＜0.5%*s, CLVC＜0.3%*s | |
| Acceleration and Deceleration Time | 0.0s~3200.0s, 0.0min~3200.0min | |
| Torque Lifting | 0.0％~30.0％ | |
| Overload | Heavy Load Application 150% 1min/5min, Light Load Application 110% 1min/5min | |
| V/F Curve | Multiple ways: linear V/F curve, 5 kinds of torque reduction characteristic curve mode (2.0 power, 1.8 power, 1.6 power, 1.4 power, 1.2 power), user-defined VF curve | |
| Input Frequency Accuracy | Digital: 0.01Hz, Analog: 0.01Hz | |
| Control Performance |
Acceleration and Deceleration Curve | Straight, S Curve |
| Multiple Speed-Steps Operation | 16-Speed Steps Operation through control terminals | |
| Automatic VoltageAdjustment (AVR) |
Keeping the output voltage constant automatically when the grid voltage changes within a certain range | |
| Fixed Length | Setted and Fixed Length Control | |
| In-build PID | It Can Easily Constructed Closed loop control system | |
| Enhencement Function | Free Function Block | |
| Input/output Power |
Set Frequency | Keyboaed, UP/DOWN Terminals, Multiple Speed-Steps Operation, Terminals Pulsation, Com |
| Analog Input Terminals | AI1: 0V~10V/-10V~10V, AI2: 0V~10V/0(4) mA~20mA | |
| Digital Input Terminals | DI1-DI6, 6 programmable digital input terminals, optocoupler isolation, compatible with drain/source input | |
| Digital Input/Output Terminals | DIO1: Fast pulse output, normal input/output; DIO2: fast pulse input, normal input/output | |
| Anolog Output Terminals | 2 Strings 0V~10V/0 (4) mA~20mA | |
| Relay Output | 2Strings Contact Type FormC | |
| Motor Temperature Detection | Support PT100/PT1000/KTY84 | |
| STO Interface | SIL3/PLe Safe torque shutdown function | |
| Com | Com Protocol | Modbus RTU (Standard), Pro ibus, CANopen, pro inet, Devicenet, Ethercat |
| Environment | Altitude | Without Derating Operation Within 2000m Altitude; 2000m～4000m, Each 100m lifting, Derating 1% (Current) |
| Operation Temperature | -25℃~+40℃ (40℃~55℃ Derating) | |
| Humidity | 15%~95%, Without Condensation | |
| Vibration | 3M3, IEC60721-3-3 | |
| Storage Temperature | -40℃~+70℃ | |
| Operation Place | Indoor, Without direct sunlight, no flammable, corrosive gases, liquids and conductive particles | |
| Accessory | Encoding card, communication expansion card, voltage detection card | |
| Protection Function | Short circuit, over current, overload, over voltage, under voltage, phase loss, over temperature, external fault, etc. | |
| Efficiency | 5.5kW~22kW: ≥93%; Above 30kW: ≥95% | |
| Installation Method | Cabinet | |
| Protection Degree | IP20 | |
| Cooling | Forced Air Cooling | |
-
United States
Boost your industrial efficiency with our HV500 drive, designed for seamless integration into advanced automation systems. Featuring high overload capacity (150% for 1min) and support for multiple protocols like Modbus RTU and EtherCAT, it ensures reliable performance in demanding applications such as manufacturing and logistics. -
Germany
Experience precision engineering with the HV500, offering closed-loop vector control (CLVC) for 0.01% speed regulation accuracy. Ideal for Germany’s high-standard manufacturing sector, it includes SIL3/PLe safety functions and robust communication options like PROFIBUS, ensuring unmatched reliability in automated production lines. -
Japan
Optimize energy savings in compact spaces with the HV500’s high efficiency (≥95% for 30kW+ models). Its wide input voltage range (200V–690V) and forced air cooling make it perfect for Japan’s dense industrial zones, while built-in PID support simplifies closed-loop control for precision machinery. -
India
Overcome grid instability with the HV500’s automatic voltage adjustment (AVR) and tolerance to voltage unbalance (≤3%). Designed for India’s harsh environments, it operates reliably in temperatures up to 55°C and supports heavy-load applications, reducing downtime in sectors like textiles and agriculture.
